Introduction to BMX Freestyle Frames
Choosing the right BMX freestyle frame is one of the most important decisions for any rider, as it directly affects your performance, durability, and overall feel of the bike. Whether you’re a technical rider who prefers street and flatland tricks or someone who loves catching air on big jumps and park ramps, the frame you select must be tailored to your riding style.
Freestyle frames are designed to handle the wear and tear of tricks, grinds, and high-impact landings. The geometry of a frame can influence how nimble or stable it feels, with key aspects like the top tube length, head tube angle, and chainstay length playing crucial roles:
- Shorter chainstays & steeper head tubes: quick handling for flat 540s, nose manuals, fakies, tailwhips
- Longer chainstays & slacker head tubes: stability for transitions, big airs, dirt jumps
Considerations When Choosing a BMX Freestyle Frame
| Factor | Why It Matters |
|---|---|
| Geometry | Steep head tube (75–76°) for tech tricks vs. slacker (73–75°) for stability |
| Top Tube Length | 20.0″–20.75″ for agility; ≥21″ for taller riders or more stability |
| Chainstay | 12.5″–13.2″ for snappy rear-end control; ≥13.25″ for stability on ramps & jumps |
| Material | 100% chromoly (heat-treated) offers the best strength-to-weight balance |
| Weight | Lighter for technical street tricks; slightly heavier for durability on big impacts |
| Durability | Reinforced gussets & dropouts withstand grinds and hard landings |
| Riding Style | Tech street → steep/short; park → mid-range; dirt → long/slacker |
Fiend Reynolds V3 Frame — Best for Street Riding
Built with input from Garrett Reynolds, the Reynolds V3 Frame is tailored for technical street riders who demand precision and strength.
| Pros | Cons |
|---|---|
| Designed by Garrett Reynolds for technical street riding | Brake mounts & gyro tabs sold separately |
| Heat-treated 4130 chromoly & double-butted tubing for durability | Heavier at ~5 lbs for riders seeking ultralight |
| Responsive 75.5° head tube & 12.75″ chainstay geometry | |
| Integrated seat clamp, chain tensioners, internal/external gussets |
Key Features:
- Heat-treated 4130 chromoly frame
- Double-butted top/down tubes
- Integrated seat clamp & chain tensioners
- Internal + external gussets
- Steep 75.5° head tube
- Short 12.75″ chainstay

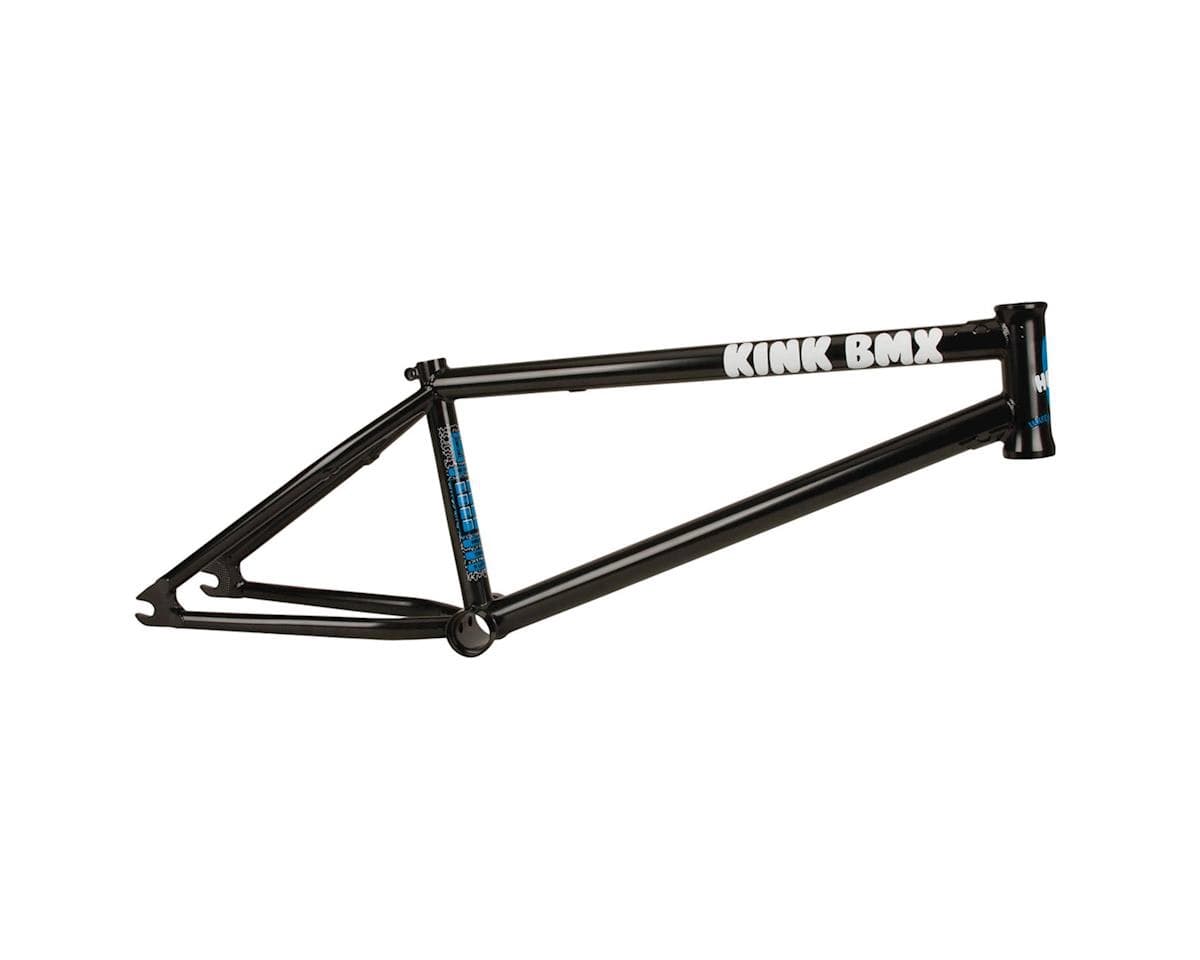

Kink Williams Frame — Most Durable for Street Riding
Nathan Williams’ signature frame, built entirely from seamless Sanko 4130 chromoly, designed to take the heaviest street abuse.
| Pros | Cons |
|---|---|
| 100% seamless Sanko 4130 chromoly for maximum strength | Brake mounts not included |
| Integrated chain tensioners for consistent drivetrain performance | Slightly heavier (~4.94 lbs) than some competitors |
| Investment-cast, knurled dropouts for superior grind durability | |
| Custom gussets & CNC brass badge for added rigidity & style |
Key Features:
- 100% seamless Sanko 4130 chromoly tubing
- Integrated chain tensioners
- Investment-cast dropouts with interior knurling
- Custom-shaped gussets & 5″ head tube
- CNC seatstay bridge with brass badge
Sunday Soundwave V3 Frame — Best Multidiscipline Frame
The Soundwave V3 excels in street, park, or dirt with its versatile geometry and dent-resistant “wave” tubing.
| Pros | Cons |
|---|---|
| Lifetime warranty via Sunday’s 41-Thermal process | Non-integrated seat clamp (sold separately) |
| Wave tubing resists dents, keeps frame looking new | Brake mounts included but removable |
| Hollow dropouts with built-in chain tensioners | |
| “Black Magic” anti-corrosion coating | |
| Adjustable geometry: 75° head tube & 13.2″–13.5″ chainstay for street, park, or dirt agility |
Key Features:
- 41-Thermal processed chromoly (lifetime warranty)
- Wave top/down tubes prevent dents
- Hollow 8 mm dropouts + integrated tensioners
- “Black Magic” rust-proof coating
- Available in 20.5″, 20.75″, 21″, 21.25″ top tubes
Each of these frames offers unique strengths—pick the one that aligns with your riding style, whether it’s technical street, all-round versatility, or bombproof durability!
S&M Black Magic BMX Frame — Best for Trails
The S&M Black Magic Frame is designed for riders who thrive on dirt trails and high-speed stability. Matty Aquizap’s signature model offers a slacker 74° headtube angle and a longer rear end, making it perfect for roasting jumps and handling big lines on the trails. The use of a Thermal-X butted tubeset ensures durability while keeping the frame relatively lightweight for its size and strength.
Built specifically for dirt riders, the Black Magic comes equipped with welded brake bosses on the chainstays for strong braking power. Its long chainstay (14.1"–14.75") and low bottom bracket height (11.6") further add to its stability, giving riders more confidence when hitting fast, high-speed jumps. Although it’s slightly heavier than frames designed for street or park, the Black Magic excels in providing control and stability on the trails, making it the top choice for dirt-focused riders.
| Pros | Cons |
|---|---|
| Exceptional high-speed stability (slacker geometry) | Heavier at 5.4 lbs—less ideal for technical tricks |
| USA-made, Thermal-X butted tubeset for durability | No gyro tabs—limits barspin/tailwhip setups |
| Welded chainstay-mounted brake bosses | |
| Integrated seat clamp—no extra hardware needed |
Key Features:
- Thermal-X Tubeset: Light yet extremely strong
- Welded Brake Mounts: Chainstay bosses for reliable braking
- Long Chainstay: 14.1"–14.75" for stability
- 4Q Baked Dropouts: 3/16" heat-treated chromoly
- Made in USA: Top craftsmanship

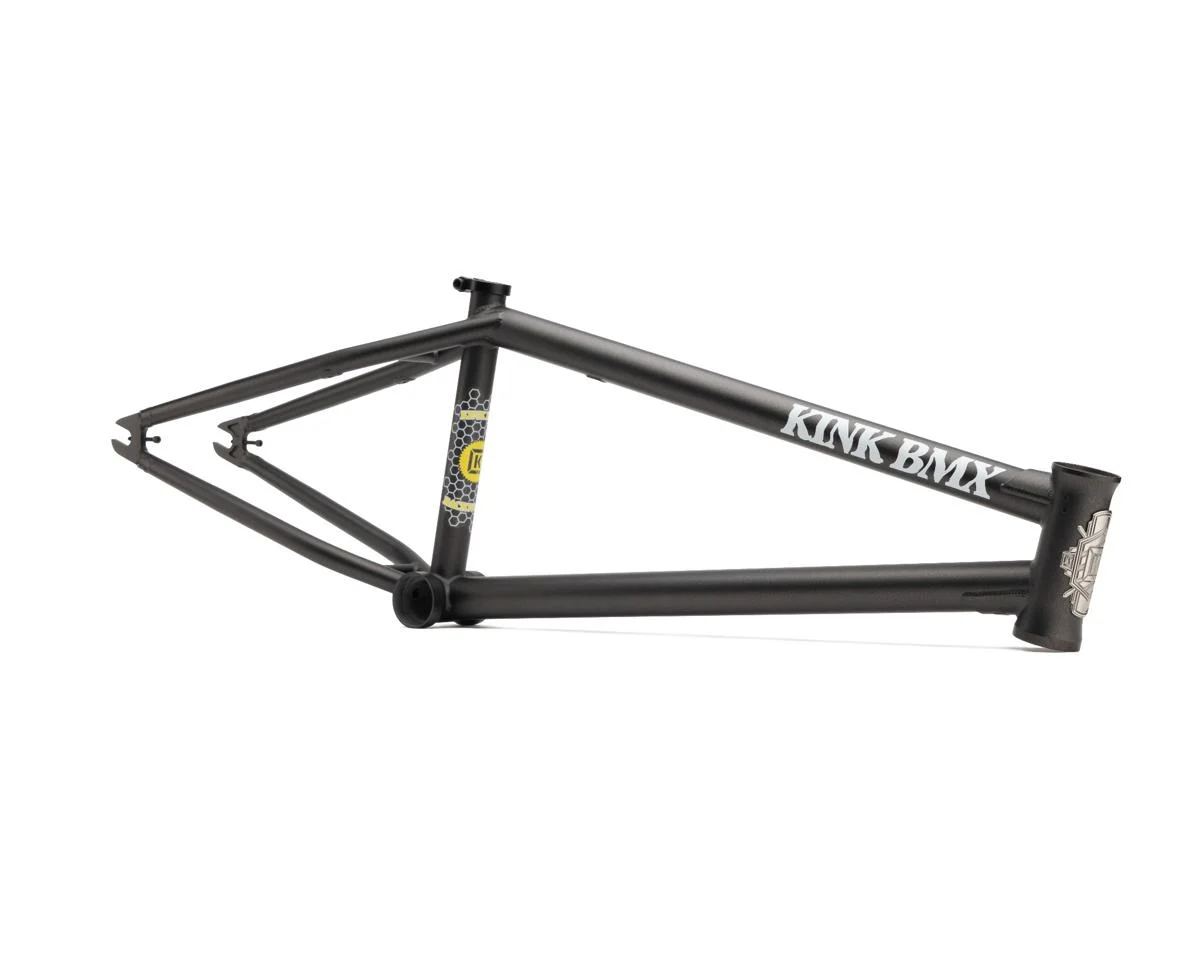

Kink Backwoods BMX Frame — Best for Park Riding
The Kink Backwoods Frame blends lightweight agility with park-focused geometry. Its 74.5° headtube angle delivers quick steering and nimble handling, while the 13.5" chainstay balances stability for jumps and transitions. Constructed from 100% seamless Sanko 4130 chromoly tubing with gussets on the toptube and downtube, this frame is built to last through hard park sessions.
With integrated chain tensioners and removable brake mounts, the Backwoods is versatile enough to switch between brakeless and brake setups, making it perfect for park riders who demand precision and adaptability.
| Pros | Cons |
|---|---|
| Lightweight at 4 lbs 15 oz—great for technical park | 13.5" chainstay may feel long for street-style manuals |
| 100% seamless Sanko 4130 chromoly + gussets | Limited to ED Black color |
| Integrated chain tensioners on dropouts | |
| Removable brake mounts | |
| Modern 74.5° headtube angle for nimble handling |
Key Features:
- Integrated Chain Tensioners for perfect alignment
- Removable Brake Mounts for setup flexibility
- Kink Master Clamp: 5 mm/6 mm combo bolt seat clamp
- K-Brick Headtube Badge for unique styling

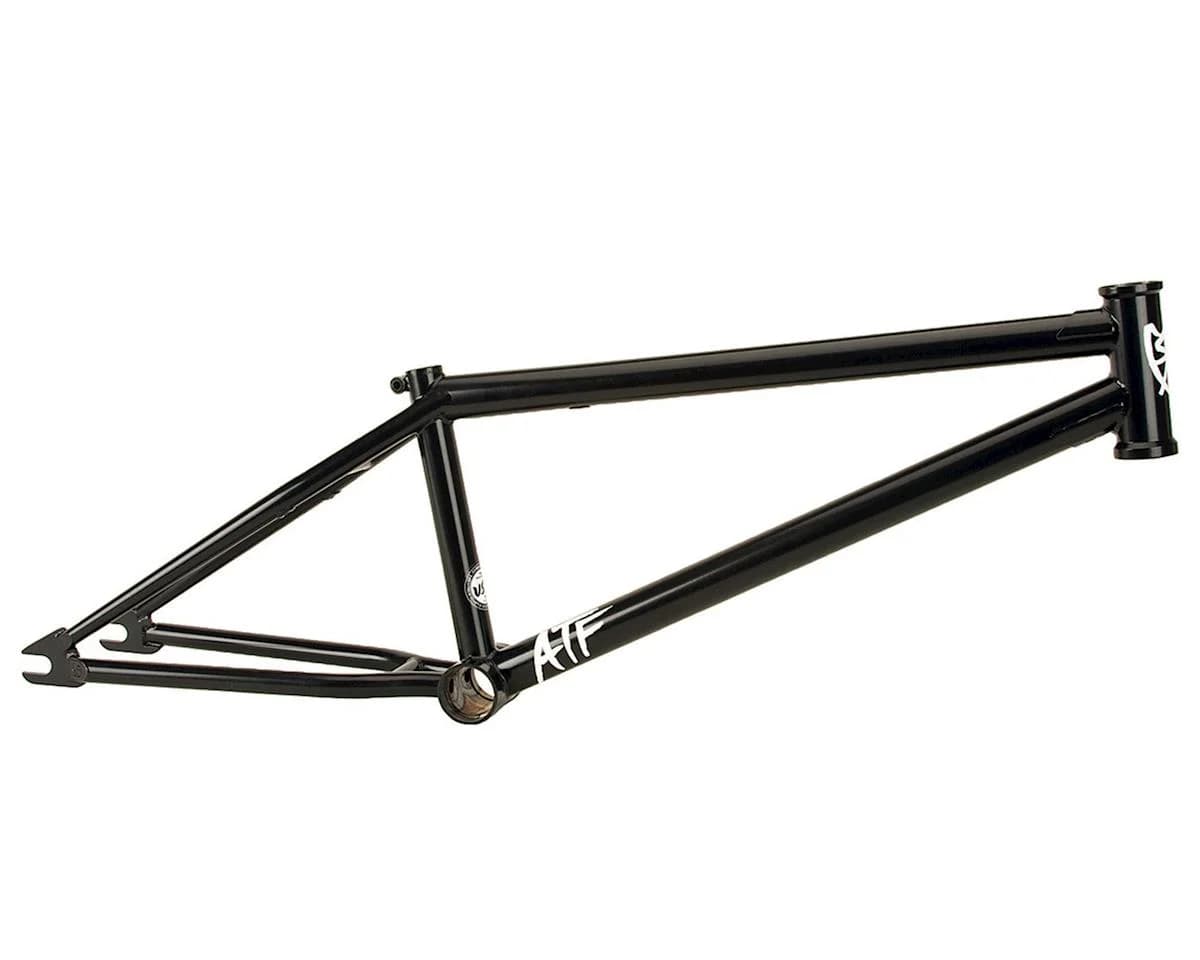

S&M ATF Frame — Most Durable for Trails
The S&M ATF (All-Terrain Frame) is built for riders who demand strength across trails, park, and street. Its balanced geometry (75° headtube) and Super Therm chromoly tubing deliver outstanding durability for heavy impacts. Made in the USA with 4Q-Baked dropouts and removable U-brake mounts, the ATF frame combines ruggedness with versatility.
Whether you’re railing berms, grinding ledges, or hitting big transitions, the ATF frame’s strong construction and thoughtful features ensure it can handle whatever you throw at it.
| Pros | Cons |
|---|---|
| Super Therm chromoly tubing for maximum impact resistance | Heavier at 4 lbs 12 oz—less ideal for pure park riding |
| Versatile geometry for trails, park, and street | No gyro tabs—limits detangler use |
| Made in the USA with top-quality craftsmanship | |
| Removable U-brake mounts for custom setups | |
| 4Q-Baked, 5 mm thick dropouts for extra durability |
Key Features:
- Super Therm Chromoly: Ultra-strong tubing
- Integrated Seat Clamp: Sleek, no-extra-hardware look
- Tapered Seatstays: Removable U-brake mounts
- 4Q-Baked Dropouts: 5 mm heat-treated chromoly
- 75° Headtube Angle & 13.25"–13.5" Chainstay: Balanced all-terrain geometry
Conclusion
Your choice of BMX frame geometry and construction material directly influences how your bike handles, responds, and holds up to abuse. Technical street riders should gravitate toward frames with steep headtube angles (75.5°–76°) and short chainstays (12.5"–12.8") like the Fiend Reynolds V3 or Kink Williams, while park and dirt riders may prefer slightly slacker headtubes (74°–75°) and longer chainstays (13.2"–14.7") for added stability, as seen in the Sunday Soundwave V3 or S&M Black Magic. For true all-terrain versatility, frames like the S&M ATF or Sunday Soundwave deliver balanced geometry, integrated features, and race-bred durability. By aligning your frame’s specs—top tube length, headtube angle, chainstay length, and tubing material—with your personal riding priorities, you’ll ensure a setup that feels intuitive, durable, and perfectly tailored to your BMX discipline.
